OMS Combi

OMS Combi Support
What can I do if I lose the code?

The combination lock 8002 can be opened with the master key whenever the entered code is forgotten or lost or in an emergency. In addition, the use of the master key to open the lock will make it possible to find out the code used. Steps to follow:

  1. Opening the door with a master key:
    Open the door with the master key.
  2. Code retrieval:

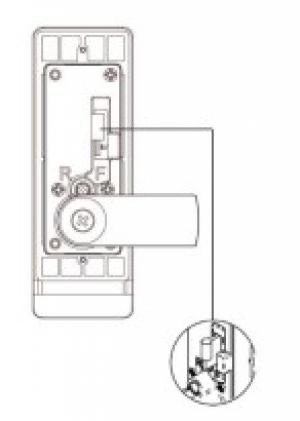

    With the door open and access to the back of the lock, the combination stored in the lock can be retrieved as follows: Firmly press and hold the code retrieval lever inside the lock. While holding down the lever, turn each code wheel clockwise until it stops, or a click is heard

3. Confirmation of the code:
The numbers on which the wheels stop will form the code stored in the lock, so you should now be able to open and close the lock normally. If the lock does not open and close normally, repeat step 2. Code retrieval.

The lock has two operating modes:

    1. Fixed mode (F): In this mode, the code is fixed, and the same code is always used to open the lock.
    2. Free mode (R): The locker user can reset the locking code in this mode. When leaving the locker, the next user can set their own code. Note: The lock is supplied from the factory in free mode.

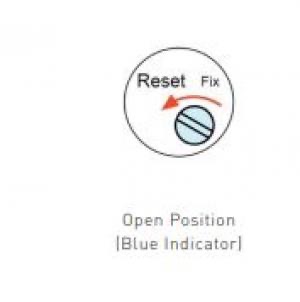

  1. With the lock in the locked position, ensure that the adjusting screw on the back of the lock is turned to position R.

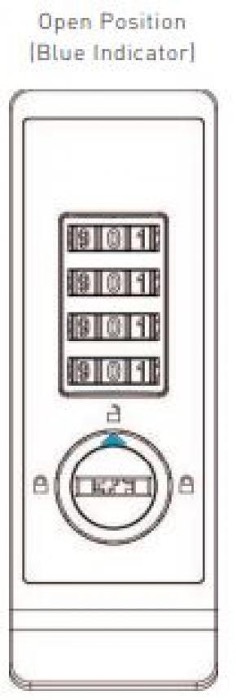

2. Using the turn knob, turn the lock to the open position, with the blue arrow pointing vertically.

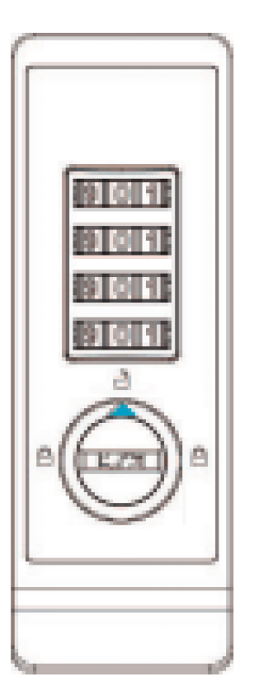

  1. Now enter the fixed 4-digit code by turning the wheels.

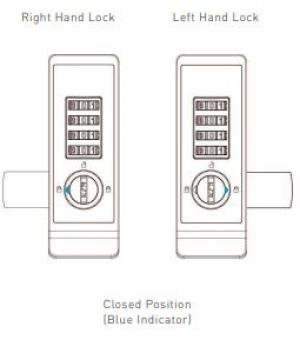

  2. Turn the knob 90° to the left or right to the locked position depending on the orientation of your lock.

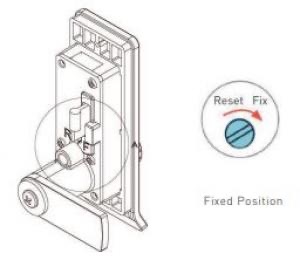

5. Now turn the adjusting screw on the back of the lock to position F. From now on, the lock will be used in fixed mode, and the same code must always be used to open the lock.

**Important: After step 4, the user must turn the code wheels randomly for both free and fixed mode. This will prevent other users from being able to see your lock code.

  1. With the lock in the locked position, ensure that the mode adjustment screw on the back of the lock is turned to position R.

2. Use the knob to turn the lock to the open position.

  1. With the lock still in the open position, turn the wheels to indicate the required 4-digit code.
  2. Close the door and turn the lock to the locked position according to the orientation of your lock.

**Important: After step 4, the user must turn the code wheels randomly for both free and fixed mode. This will prevent other users from being able to see your lock code.

OMS Combi assembly instructions
